Getting ID Provider Information

This section describes how to get information about an ID provider. Configure the setting for SP (linked service) of SAML Application as needed.

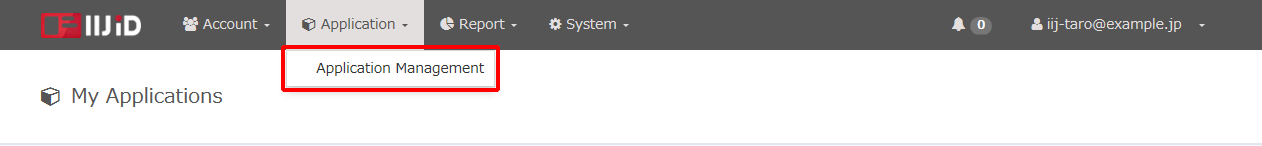

  1. Click "Application Management" in "Application."

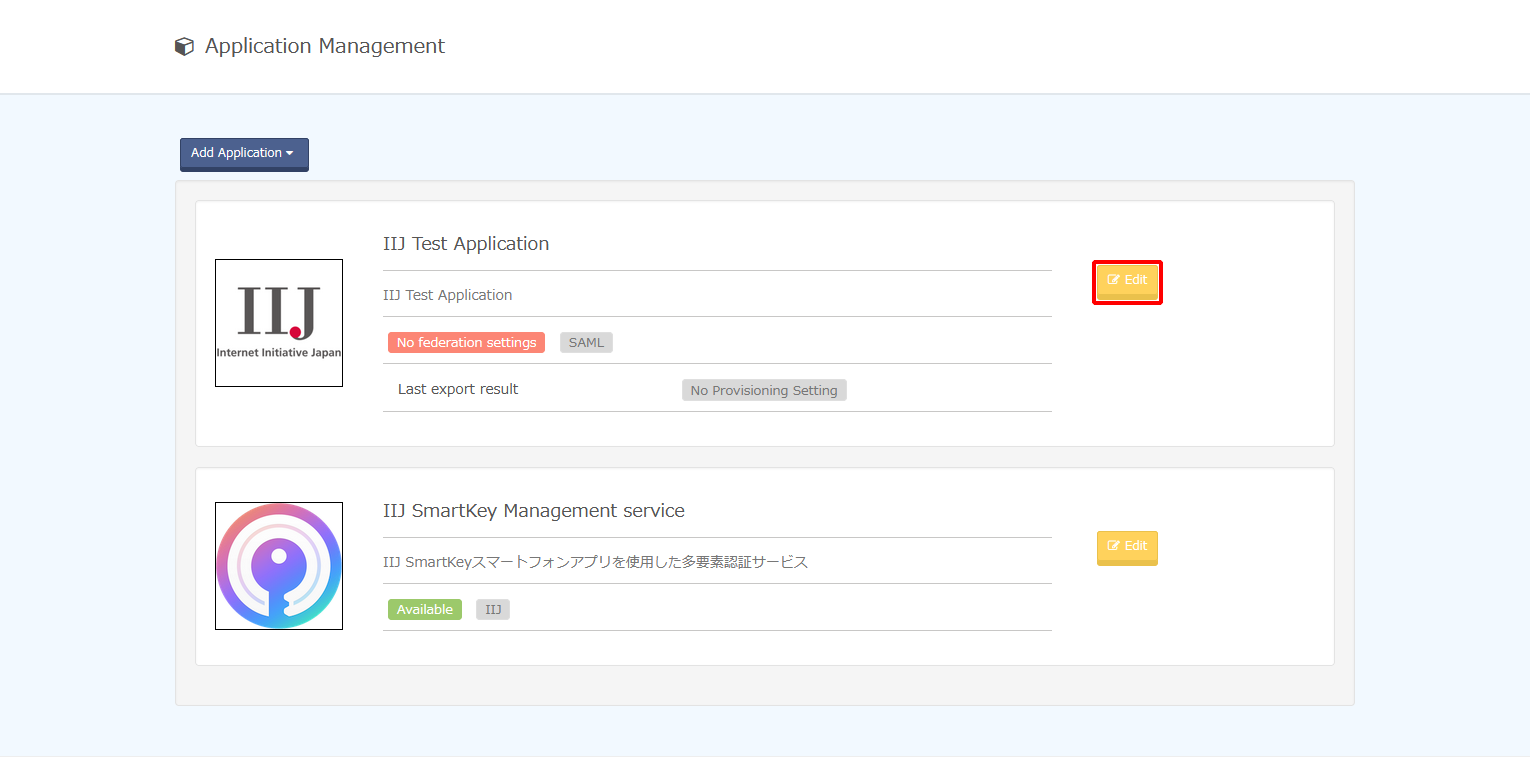

  2. Click "Edit" for SAML Application.

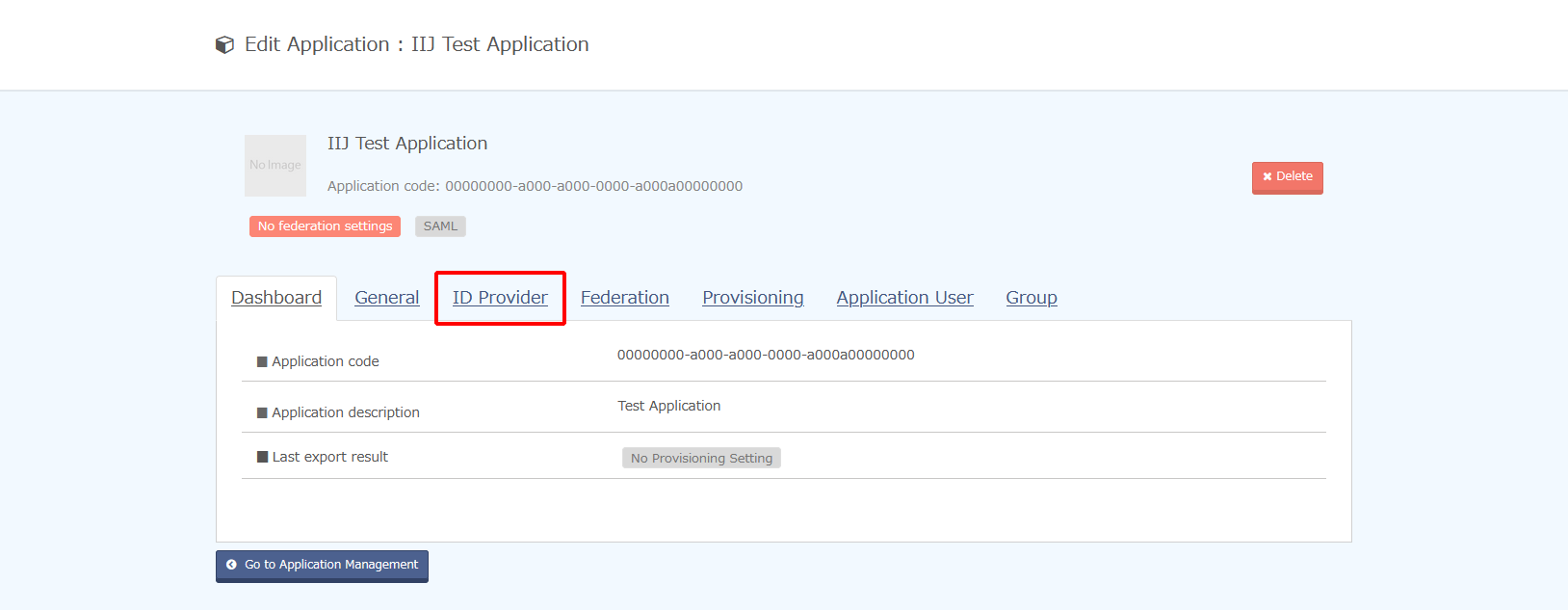

  3. Click "ID Provider."

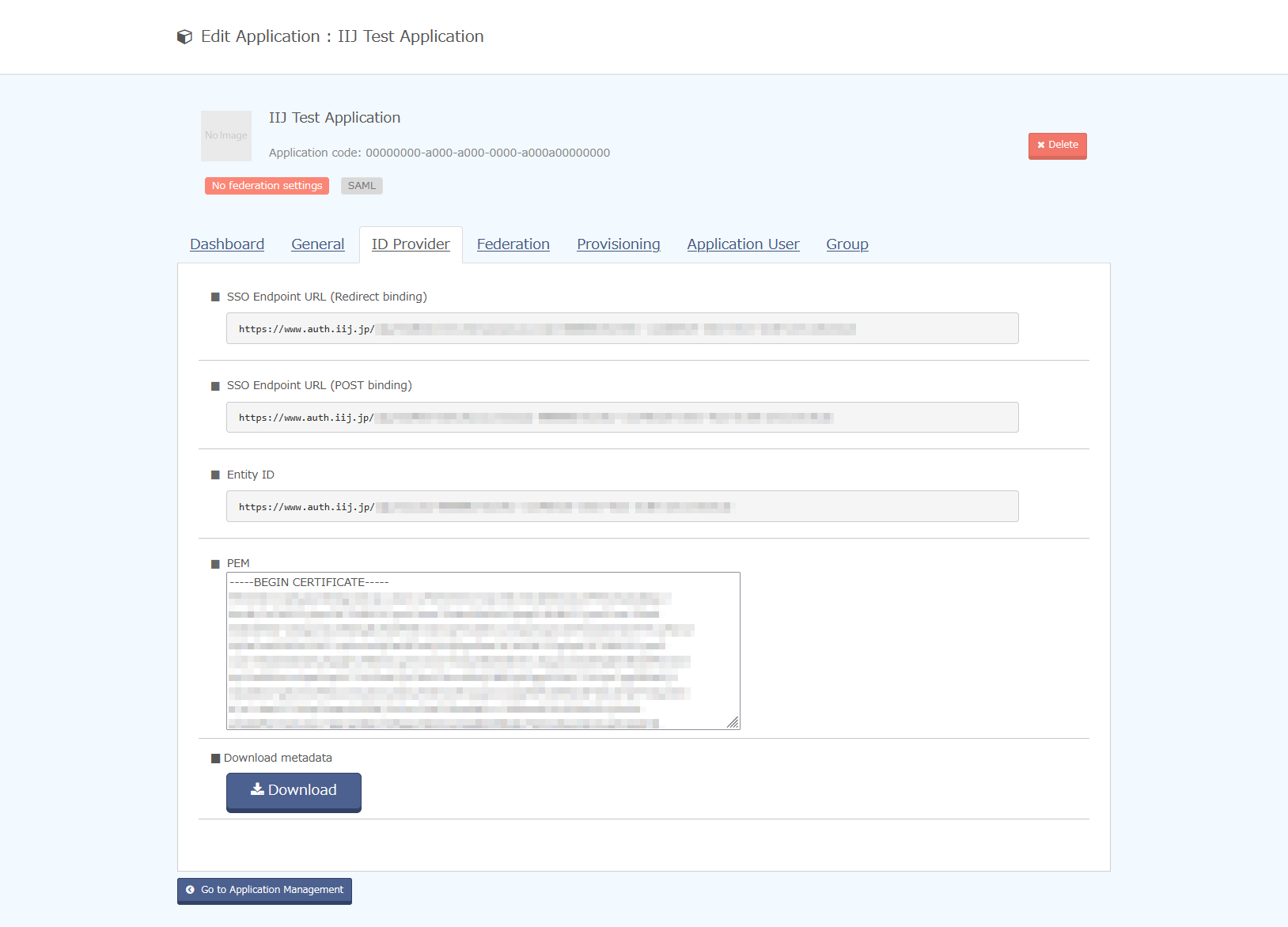

  4. Information about the ID provider is displayed.

    Option Description
    SSO Endpoint URL (Redirect binding) URL to be used for authentication request/response
    SSO Endpoint URL (POST binding) URL to be used for authentication request/response
    Entity ID Unique identifier used to identify a specific entity for SAML authentication and authentication protocol
    PEM Certificate data of the ID provider. It is issued by the digital signature algorithm using SHA512.
    Download metadata

    Data of ID provider information organized in an xml file.

    The following information is included as information on the above four items and the corresponding NameID format.

    • urn:oasis:names:tc:SAML:2.0:nameid-format:persistent
    • urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
    • urn:oasis:names:tc:SAML:2.0:nameid-format:emailAddress
    • urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified
